টমেটো প্রসেসিং লাইন
>
|
|
| Place of Origin | Shanghai |
| পরিচিতিমুলক নাম | Gofun |
| সাক্ষ্যদান | ISO, CE certification |
| Model Number | GFM-TPL |

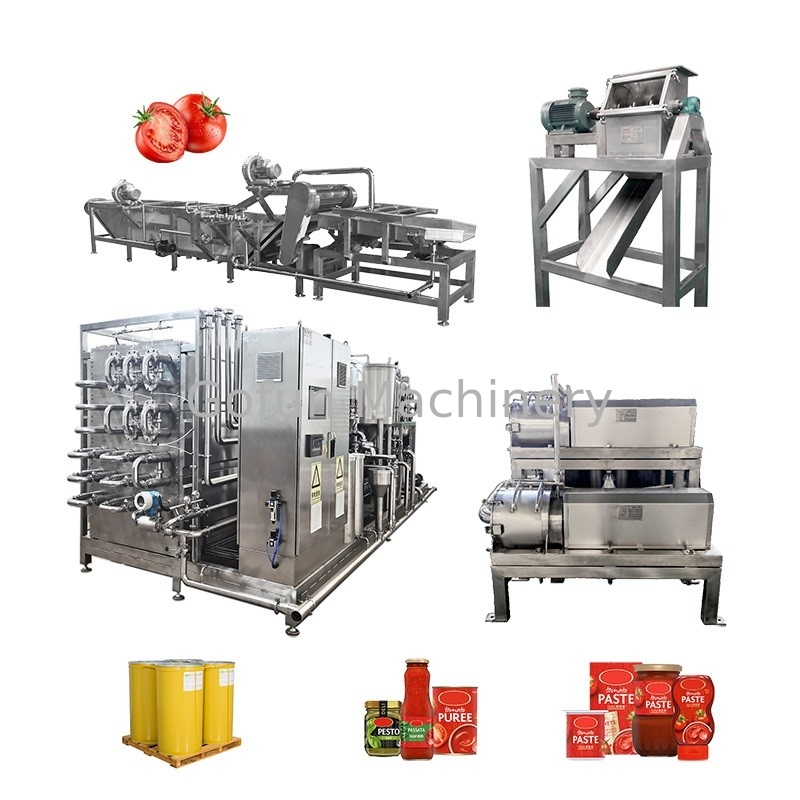

Processing Technology and Machinery
The production line covers the entire process, starting from the cleaning and sorting of raw materials to concentration and sterilization. Key equipment includes:
Aseptic Filling System: Ensures the long-term preservation of tomato paste.
Evaporation and Concentration Equipment: Elevates the tomato solids content to over 28%.
Pasteurization Unit: Preserves flavor while extending the shelf life of the product.
Expansion of Application Scenarios
In addition to traditional catering, tomato products are widely used in the creation of ready-to-eat meals, snacks, and functional beverages to meet the diverse demands of today's food industry.
These tomato-based products are packaged in various formats to cater to market preferences and consumer needs, including:
Cans: Offering extended shelf life and convenient storage.
Sachets and Stand-up Pouches: Ideal for individual servings or on-the-go consumption.
Glass Bottles, Plastic Bottles, and Gable Tops: Available in different sizes for user convenience.
These packaging solutions are crafted to maintain product freshness, flavor, and convenience, ensuring that consumers can fully enjoy the products.
Gofun can not only provide the tomato processing equipment for the plant but also provide the one-stop solution from A to Z, which includes:
Main parameters of tomato production line
| Product name: | One-stop solution for tomato processing line |
| Fresh fruit input capacity: | 500kg per hour ~ 25 tons per hour |
| Raw material: | Fresh tomato, tomato paste |
| End product: | Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final product Brix: | 28%~30%, 36%~38% |
| Final package: | Aseptic bag, Metal can, Sachet, Stand-up pouch, PP container, Plastic bottle, Glass jar, etc |
| The main material for machines: | Food grade SUS304 or SUS316 |
| Warranty: | 12 months after commissioning |
| Operator needed: | About 10~12 persons |
| Voltage: | 380V 50Hz/ 110V 60Hz/ 415V 50Hz |
| (adjustable to client's country standard) | |
| Advantages: | Energy-saving, high efficiency, water-saving |
Flowchart of tomato paste/ sauce or ketchup processing
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Final products & Package types for tomato project
Shanghai Gofun machinery company offers all kinds of the tomato processing line.
The raw materials used in the tomato processing line can include fresh tomatoes, tomato paste, and more. The final products that can be obtained from the processing line include tomato paste, tomato ketchup, tomato sauce, tomato juice, tomato powder, whole peeled tomatoes, and more.
The end products are packaged in various forms, including aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, gable tops, and more.
After-Sales Service
1.debugging equipment
2.Oversea technical support
3.Oversea equipment maintenance
4.English speaking engineers available to provide technical support
Our Services for tomato processing plant
1. Technical support
2. Marketing suggestion
3. Final packing suggestion and design
4. Factory building and design
