Dried Fruit Production Line Tropical Fruit Processing Machinery Expert

The fruit drying production line encompasses crucial stages such as raw material processing, pretreatment, drying, and packaging, requiring specialized equipment to maintain product quality and boost production efficiency. Below is an overview of the process flow and equipment involved:

Raw Material Processing

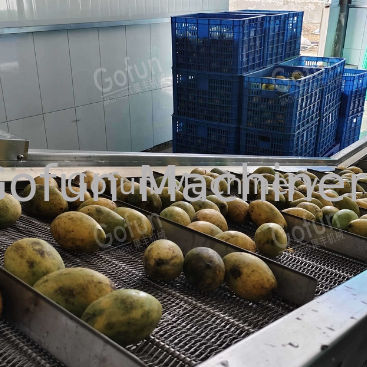

Cleaning and Sorting: Initial cleaning of raw materials involves a roller washing machine that uses high-pressure water flow and brushes to eliminate surface dirt and impurities. Soft fruits like bayberries and strawberries are washed at 0.3-0.5MPa to prevent damage, while harder fruits such as kiwis and apples can be washed at 0.8MPa.
Sorting Equipment: Utilizes an optical sorter with CCD cameras to assess color and shape, identifying and removing moldy or insect-infested fruits. Color difference parameters are adjusted based on fruit characteristics.

Pretreatment

Slicing/Cutting: Slicers are selected based on fruit attributes. For example, serrated blades are ideal for pineapples, sliced uniformly at 5-8mm thickness.
Peeling and Pitting: Halving machines or pitting knives are used for pit removal. Peeling involves the use of peeling agents or hot alkali solutions followed by water rinsing.
Color Protection: Fruit slices are immersed in a 1-3% salt solution to prevent oxidation and discoloration.

Drying

Drying Equipment: Air energy dryers or hot air drying equipment are utilized, with temperature, humidity, and time controlled via PLC touch screens. The process includes initial low-temperature heating, gradual heating, color fixation, and humidity control.
Drying Process: Materials are dried within a specified temperature range with controlled humidity levels, adjusting drying times based on material thickness and characteristics.

Packaging

Grading and Packaging: Dried fruits are graded by size and color, then sealed using packaging machines to ensure hygiene and prolong shelf life.
Metal Detection and Coding: Post-packaging, metal detection equipment identifies foreign objects, while coding machines mark production dates and batch information.

Additional Features

Versatility: The production line can also produce fruit and vegetable chips and crispy slices, with adaptable equipment configurations to meet various requirements.
Automation and Hygiene: Featuring a modular design with high automation levels, the production line incorporates 304 stainless steel components to comply with food hygiene standards.

Description

Shanghai Gofun machinery company, a professional dried fruit processing line manufacturer and exporter in China. Which can provide turnkey solution and technical support for dried fruit processing line with different kinds of fruit.

1. Dried mango processing line

2. Dried berry processing line

3. Dried apple / pear  processing line

4. Dried grape processing line

5. Dried peach / apricot / plum processing line

The sought-after product is the dried mango processing line, featuring a comprehensive set of machinery intricately designed to transform fresh mangoes into dried mangoes packaged in aseptic bags. This processing line comprises the fresh mango receiving system, washing system, sorting system, destoning & slicing system, blanching system, sugar melting system, drying system, and packing system. Ultimately, this process culminates in the production of dried mangoes packaged in aseptic bags.

Application

Shanghai Gofun Machinery Company provides a wide range of dried fruit processing lines suitable for various raw materials such as fresh mangoes, berries, apples/pears, grapes, peaches/apricots/plums, and more. The output includes dried mangoes, dried berries, dried apples/pears, dried grapes, dried peaches/apricots/plums, and other dried fruits. The final products can be packaged in aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, gable tops, and more.

The dried fruit processing lines from Shanghai Gofun Machinery Company are characterized by high efficiency, water conservation, excellent extraction rates, stringent quality control for the final product, operator safety protocols, and overall safety measures.

Flowchart

Dried Mango Processing Line

FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ PEELING ⇒ SLICING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Dried Apple/Pear Processing Line

FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ PEELING & DESTONING ⇒ SLICING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Dried Berry Processing Line

FRESH BERRY ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Dried Peach/Apricot/Plum Processing Line

FRESH PEACH/APRICOT/PLUM ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING & SLICING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Dried Grape Processing Line

FRESH GRAPE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ STALK REMOVING ⇒ DRYING ⇒ PACKING

Features

• The equipment is divided into three sections, each of which controls the temperature and speed of the material.
• When the material enters another section of equipment, it will be turned over to ensure the uniformity of material drying.
• The inside of the drying chamber is heated by steam to ensure that the moisture of the material is fully evaporated while avoiding the phenomenon of being baked and smashed.
• The steam used in the equipment will be fully utilized and recycled during the production process to ensure unnecessary energy loss.
